Do you avoid using MDI forms?

Last updated by Brady Stroud [SSW] about 1 month ago.See history

MDI (Multiple Document Interface) forms should be avoided in most modern data-centric applications because they:

  • Are a hangover from the days of Windows 3.1 and Access 2.0
  • Constrained within a smaller window
  • Only show as one window on the taskbar
  • Have no multiple monitor support (the killer reason)

vs net

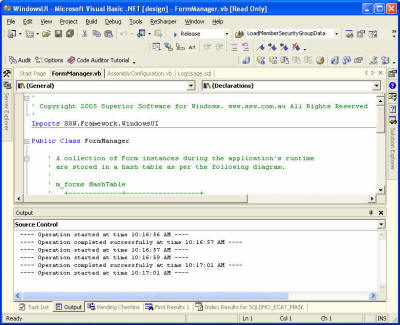

Figure: Bad example - VS.NET with tabs is cool for developers, but not for the average knowledge worker

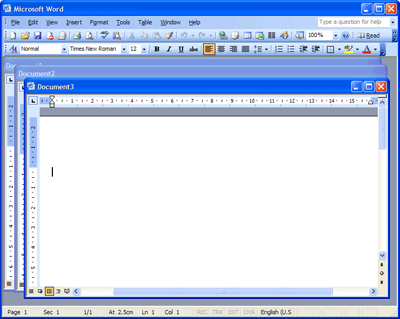

Figure: Bad example - Word 2003 in MDI mode

::: good

sdiexample

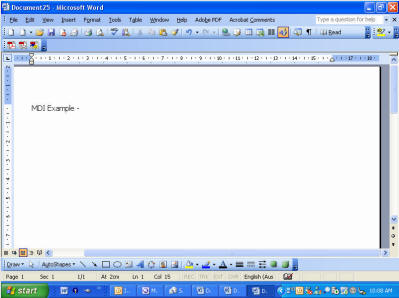

Figure: Good example - Word 2003 with Default Settings

Me.IsMdiContainer = true;

ClientForm frm = new ClientForm();
frm.MdiParent = this;
frm.Show();

Figure: Bad code example - using MDI forms

ClientForm frm = new ClientForm(); frm.Show();

Figure: Good example - not using MDI

MDI forms have the advantage that the MDI parent form will have a collection MdiChildren which contains all of its child forms. This makes it very easy to find out which forms are already open, and to give these forms focus. Accomplishing this with an SDI application requires you to:

  • A global collection of forms
  • A line of code on the load and closed events of each form which adds / removes the form from the global collection

But what about tabs? As developers, we love to use tabs similar Visual Studio.NET (figure below) and  browsers such as Mozilla and CrazyBrowser. Tabs are great for developers, but standard business applications (e.g Sales Order System) should be developed as SDI (Single Document Interface). This is because users are used to Outlook and other office applications, which don't use MDIs at all. If the users want to group windows, Windows XP lets you "Group Similar Taskbar Icons".

Adam Cogan
