Do you use Gzip?

Last updated by Tiago Araújo [SSW] 6 days ago.See history

Gzip is a file format and a software application used for file compression and decompression. Gzip can reduce file size and storage space, and reduce transmission time when transferring files over the network. It runs on both Linux and Windows.

Use PageSpeed Insights extension in Chrome to determine if your site will benefit from using Gzip.

For more information about how to use PageSpeed to find which files on your site would benefit from being compressed with Gzip see Do you use PageSpeed?

3 ways to add Gzip compression to your site:

Use one of the methods described below to add Gzip compression to your site ASP.Net/Angular website

Method 1: Turn on "Dynamic Content Compression" In IIS Server

use gzip 2

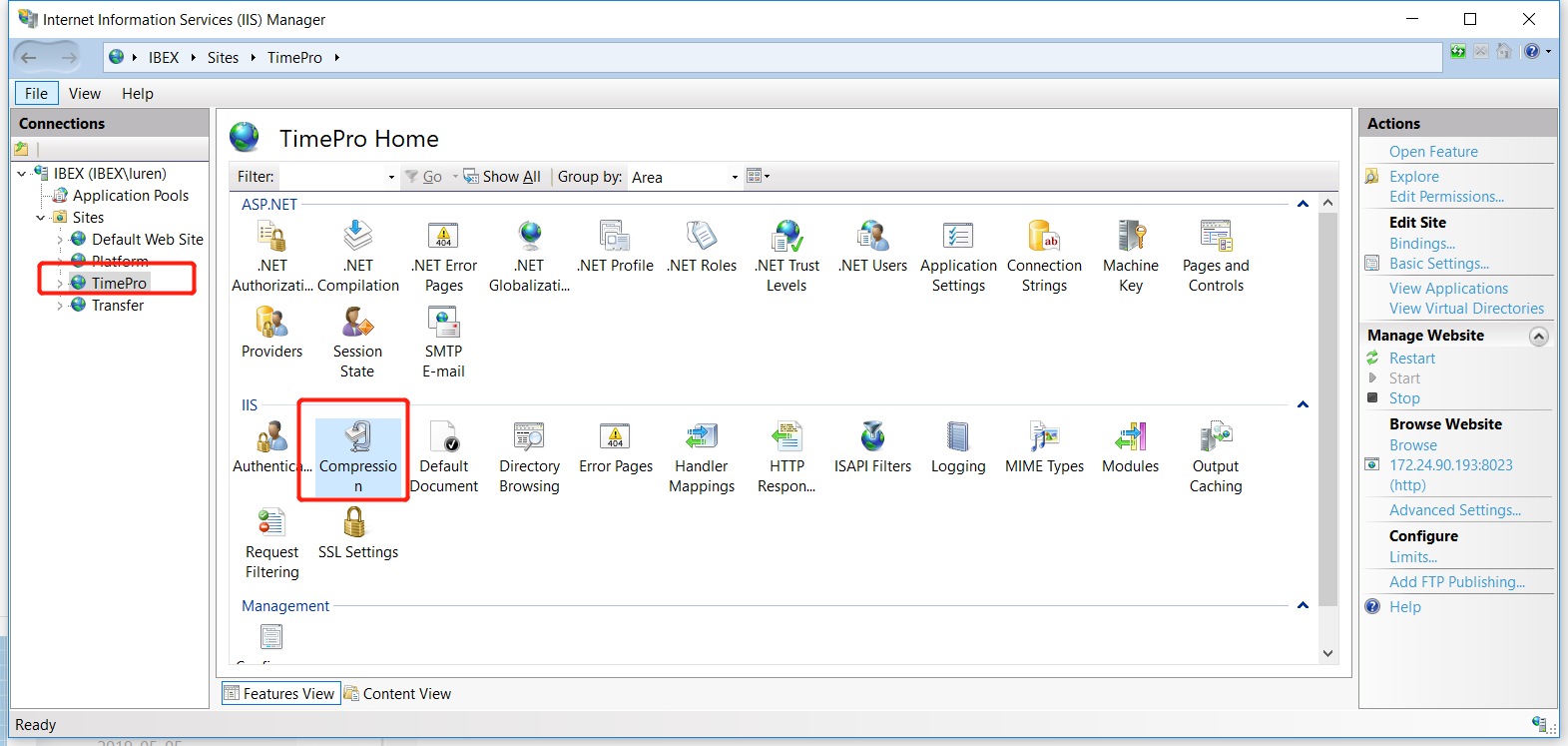

Figure: Choose the website which you want to use Gzip and click on Compression

use gzip 3

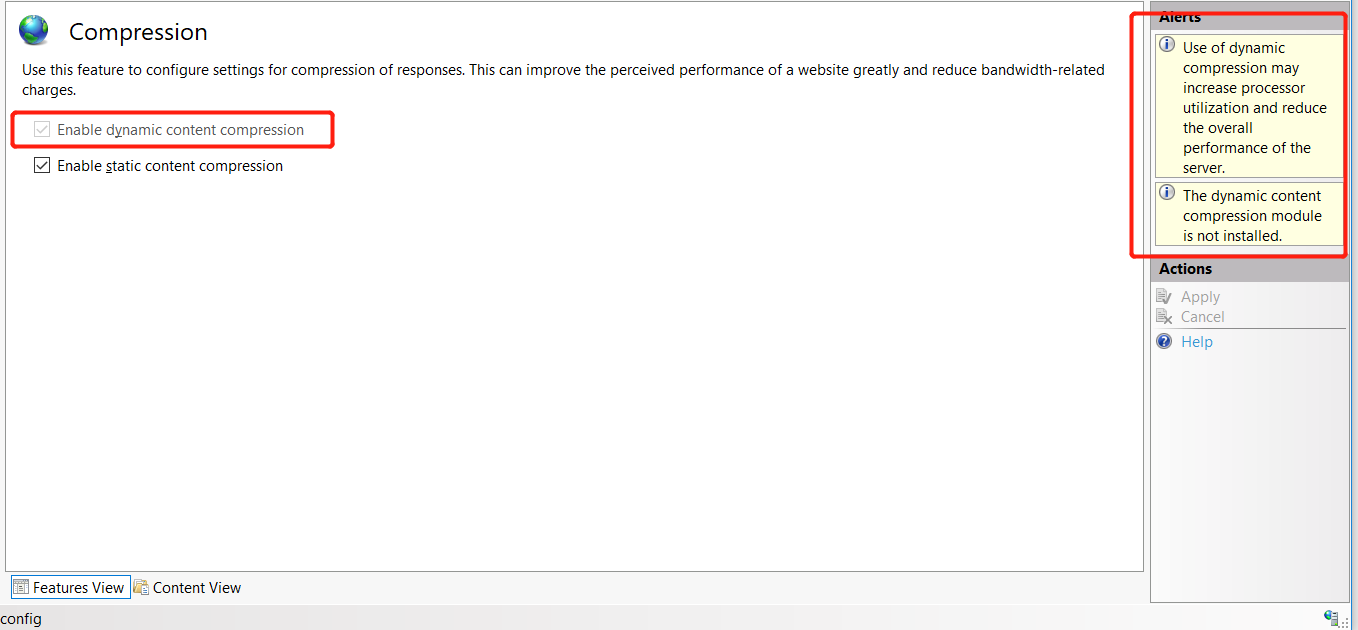

Figure: Install "dynamic content compression" if you haven't installed it

In Control Panel navigate to All Control Panel Items | Programs and Features, and click Turn Windows features on or off. Choose Internet Information Services | Web Management Tools | World Wide Web Services | Performance Features | Dynamic Content Compression.

use gzip 4

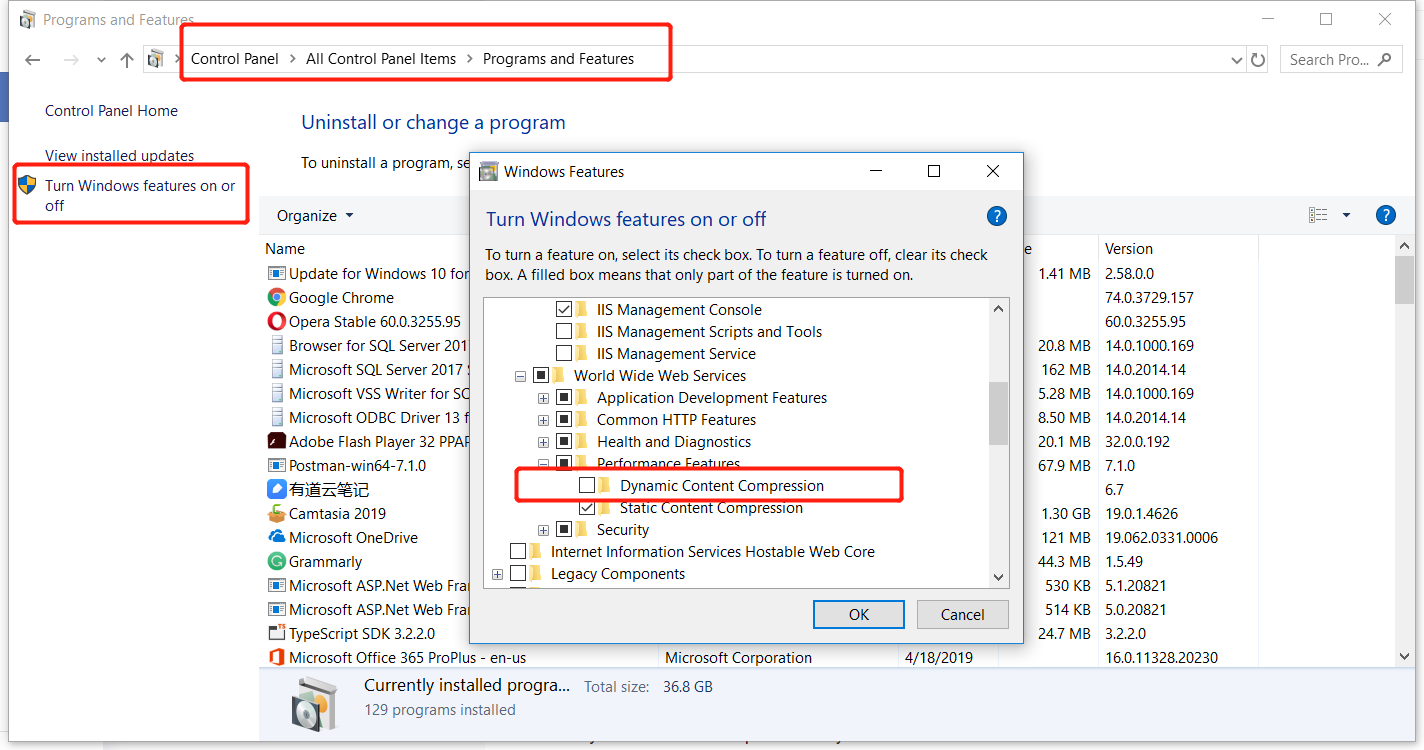

Figure: Click "Ok" to install it

use gzip 5

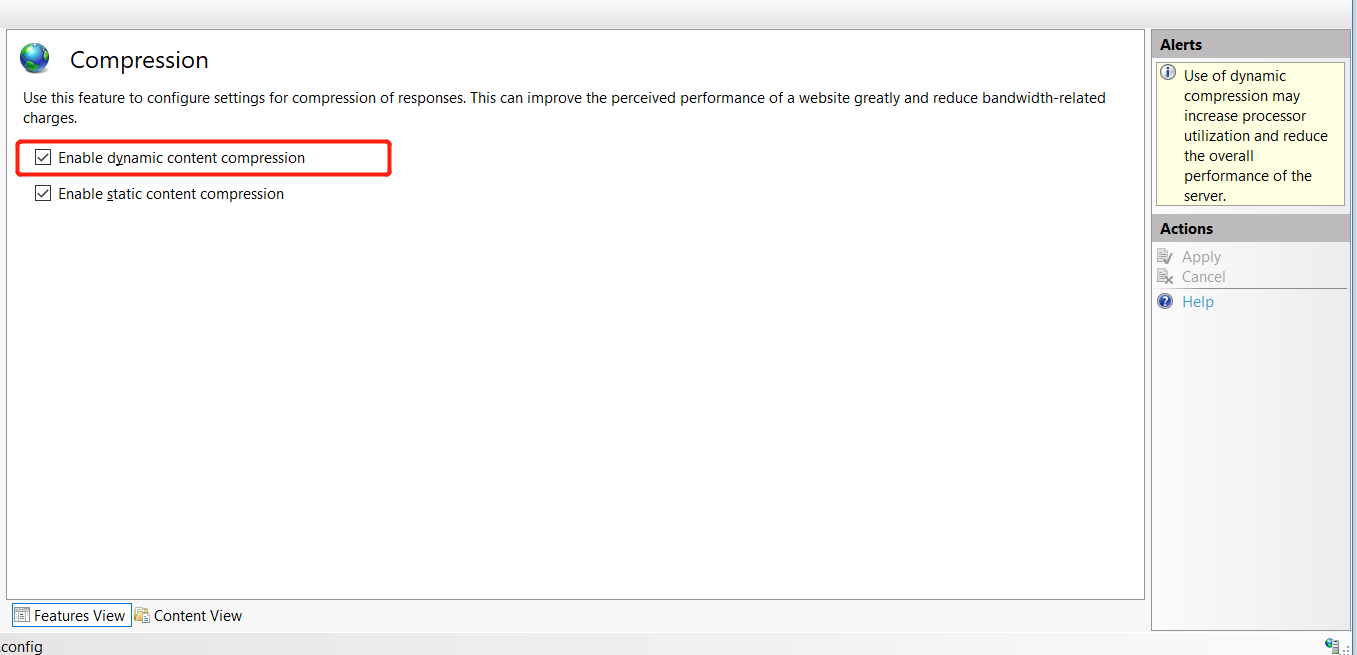

Figure: Enable dynamic content compression for your site

Method 2: Using “Gzipper” in your Angular website

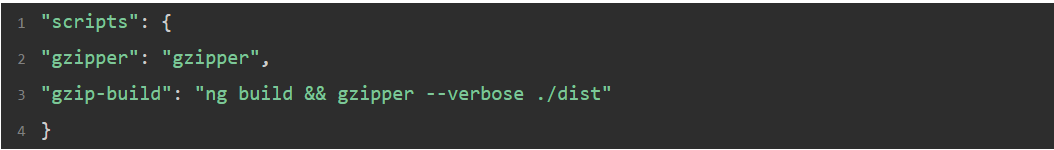

Follow https://www.npmjs.com/package/gzipper (but it still need IIS Server enable static content compression). Using npm i gzipper -g to install "gzipper" first. Add to scripts in your package.json use gzip 7

use gzip 6

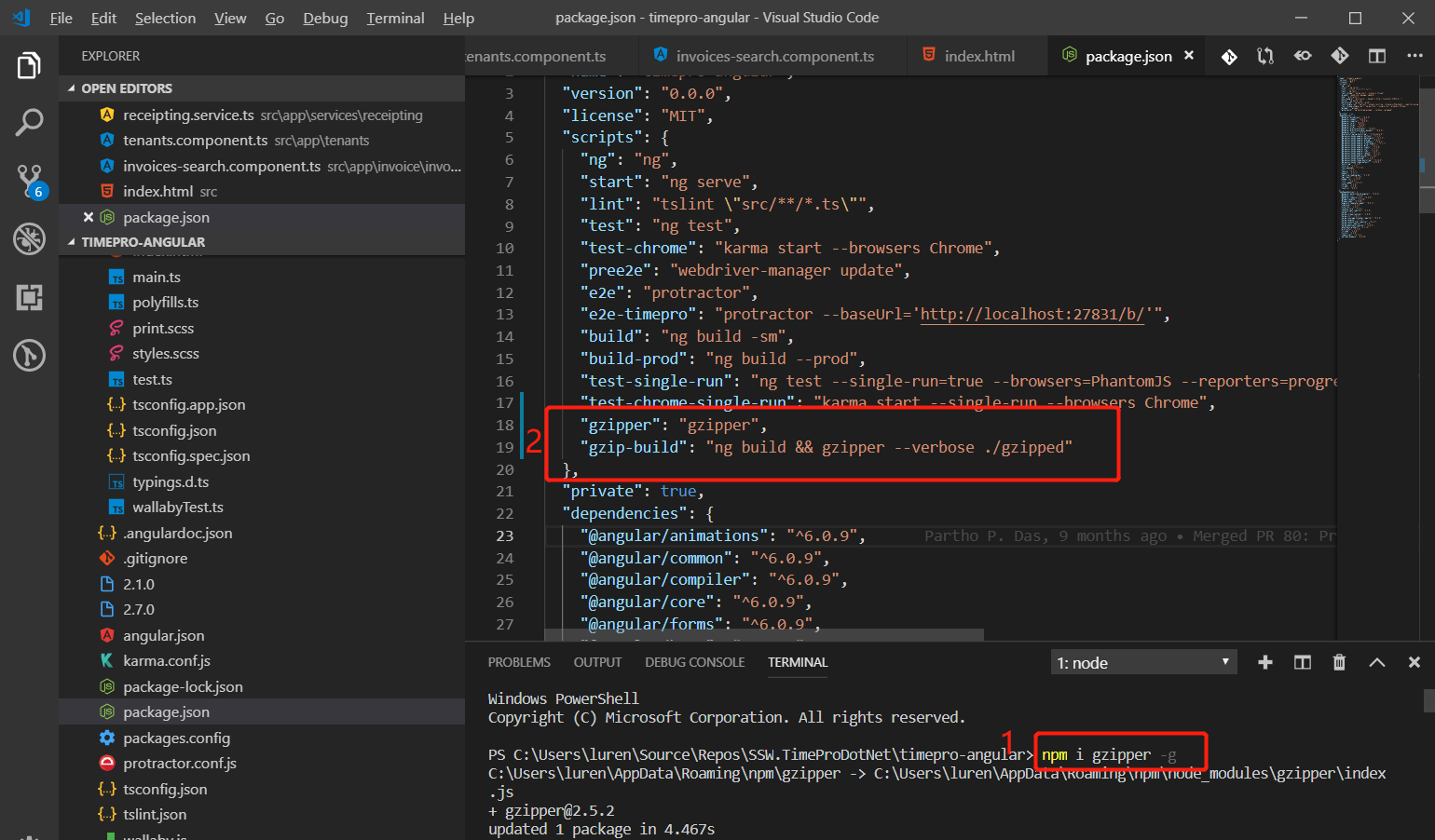

Figure: "Finish configuration like that

Method 3: Using ASP.NET code in MVC

Refer to Improve the Performance of ASP.NET MVC Web Application Using HTTP Compression.

To implement this in ASP.NET MVC, we can utilize ActionFilterAttribute and override either OnActionExecuting or OnResultExecuting method. The below code snippet is being used to check whether the current request browser can accept GZIP/DEFLATE encoding by looking at Accept-Encoding request header. If it finds GZIP encoding in this header, then we would set gzip in Content-encoding in response header and if it supports DEFLATE, then this code would set deflate in Content-encoding.

using System;
using System.Collections.Generic;
using System.IO.Compression;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace HTTPCompression.ActionFilters
{
    public class CompressAttribute : ActionFilterAttribute
    {
        public override void OnResultExecuting(ResultExecutingContext
        filterContext)
        {
          HttpRequestBase request = filterContext.HttpContext.Request;

          string acceptEncoding = request.Headers["Accept-Encoding"];

          if (string.IsNullOrEmpty(acceptEncoding)) return;

          acceptEncoding = acceptEncoding.ToUpperInvariant();

          HttpResponseBase response = filterContext.HttpContext.Response;

          if (acceptEncoding.Contains("GZIP"))
          {
              response.AppendHeader("Content-encoding", "gzip");
              response.Filter = new GZipStream(response.Filter, CompressionMode.Compress);
          }
          else if (acceptEncoding.Contains("DEFLATE"))
          {
              response.AppendHeader("Content-encoding", "deflate");
              response.Filter = new DeflateStream(response.Filter, CompressionMode.Compress);
          }
      }
  }
}
[Compress]
 public ActionResult About()
 {
    ViewBag.Message = "Your application description";
    return View();
 }

::: bad Figure: Bad example - Files with large size and slow load time :::

::: good

5 28 7

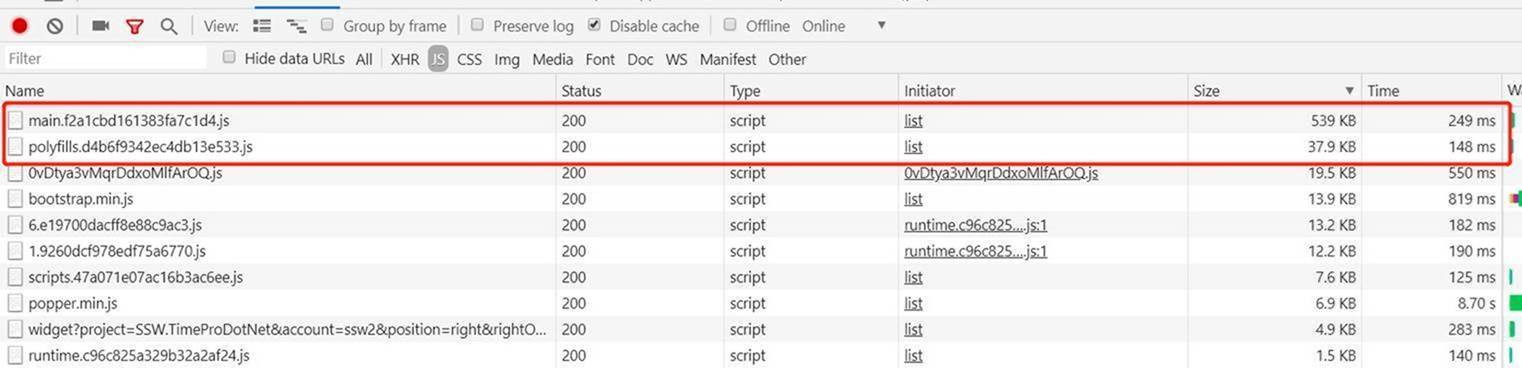

Figure: Good example - Gzipped files with smaller size and faster load time
:::
