Do you know how to improve the discoverability of your MediatR requests?

Last updated by Brady Stroud [SSW] about 1 month ago.See history

When using MediatR within an ASP.NET Controller it is typical to see actions such as the following:

improve mediatr typical

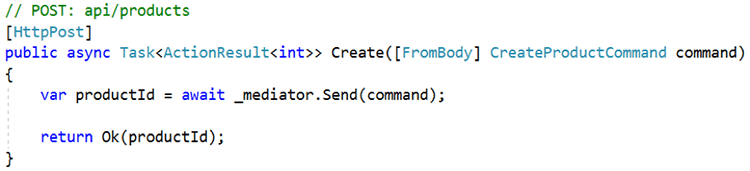

Figure: A Typical ASP.NET Controller using Mediator

In the above example, the API contains a Create action that includes a CreateProductCommand parameter. This command is a request to create a new product, and the request is associated with an underlying request handler. The request is sent using MediatR with the method call _mediator.Send(command). MediatR will match the request to the associated request handler and return the response (if any). In a typical implementation, the request and request handler would be contained within separate files:

improve mediatr bad

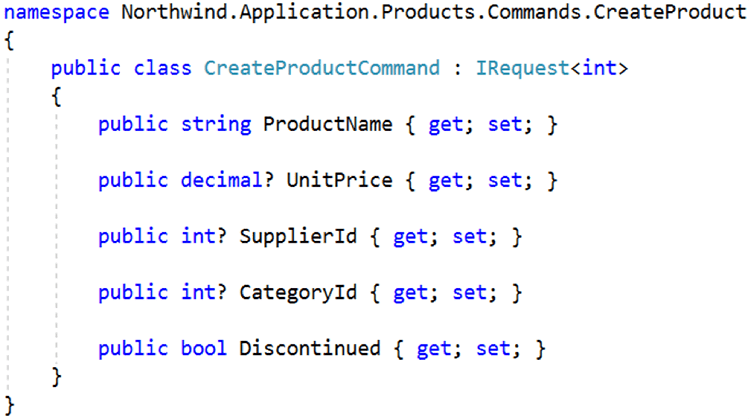

Figure: Bad Example - The request is contained within CreateProductCommand.cs

improve mediatr bad 2

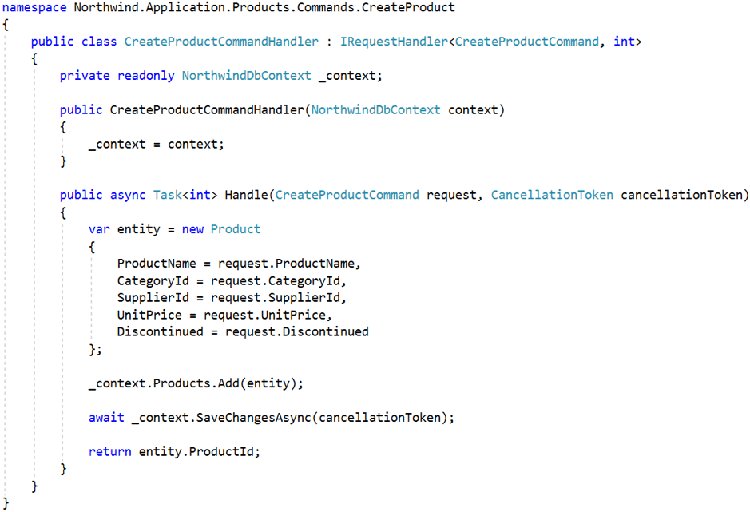

Figure: Bad Example - The request handler is contained within CreateProductCommandHandler.cs

In the above implementation, the request handler is cleanly separated from the request. However, this separation results in reducing discoverability of the handler. For example, a developer looking at the action in this first figure might be interested in the logic behind the command. So, they press F12 to go to the definition and can see the request (CreateProductCommand), but not the logic since it is contained within the request handler (CreateProductCommandHandler). The developer must then navigate to the handler using Solution Explorer or some keyboard wizardry. This is assuming that the developer is familiar with the design, and knows that there is an underlying request handler that contains the logic of interest. We can avoid these problems and improve discoverability by instead using the following approach:

improve mediatr good

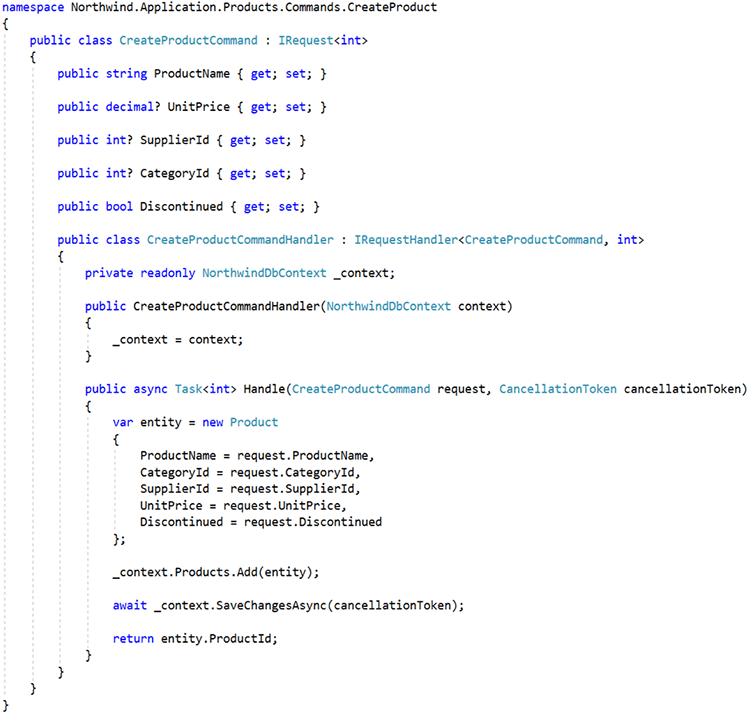

Figure: Good Example - Nesting the Request Handler within the Request Improves Discoverability of Command and Associated Command Logic

In the above example the request handler is nested within the request, there by improving the discoverability of the command and associated command logic.

Jason Taylor
